PEB Frame Welding Automation Cost in India
India's infrastructure boom—accelerated by logistics warehouses, factory sheds, and renewable energy substations—has pushed Pre-Engineered Building (PEB) fabricators to capacity limits. For structural fabricators producing between 250 to 1,500 metric tons per month, manual submerged arc or handheld MIG welding is the single largest bottleneck to scaling revenue.
CapEx Breakdown: What Actually Drives the Cost?
When structural engineering firms inquire about PEB automation cost in India, quotes typically vary between ₹35 Lakhs to ₹1.8 Crores. Understanding what makes up this capital investment is vital for financial planning:

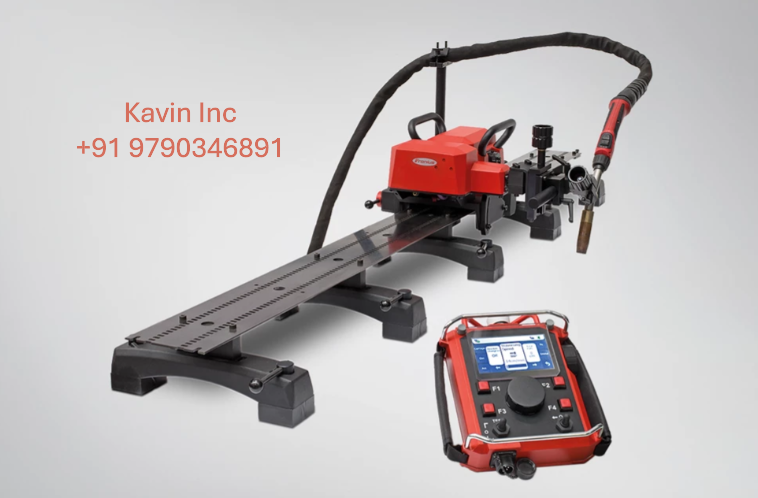

| Subsystem Component | Typical Cost Range (INR) | Engineering Function |
|---|---|---|
| H-Beam Gantry / Manipulator | ₹18 L – ₹45 L | Dual-head submerged arc (SAW) or twin tandem MIG carriage running on precision track |
| Welding Power Sources (Dual 600A-1000A) | ₹12 L – ₹35 L | 100% duty cycle heavy-amperage power sources (Megmeet, Kemppi, or Lincoln/ESAB) |
| Seam Tracking & Height Sensors | ₹6 L – ₹18 L | Laser optical or tactile arc-voltage seam tracking to accommodate web camber & taper |
| Conveyor & Clamping Alignment Beds | ₹10 L – ₹25 L | Hydraulic 90° web-to-flange tacking clamps and infeed/outfeed motorized roller tables |
| Integration, Commissioning & Training | ₹4 L – ₹10 L | Foundation alignment, weld-proving to AWS D1.1 standards, and operator certification |
Gantry System vs. 6-Axis Robot Arm: Which Fits Your Shop?
1. Linear Gantry Submerged Arc Lines (SAW)
Ideal for standard parallel or tapered built-up H-beams with web depths from 200 mm up to 2,000 mm. Gantries deposit massive dual fillets simultaneously on both sides of the web, virtually eliminating angular distortion and wing-flange camber.
2. 6-Axis Articulated Robots with Linear Rail
Necessary when your product mix includes end-plate cleat welding, gusset plates, crane bracket attachments, and structural box columns. An articulated robot (e.g. ABB IRB 2600 on a 15-meter floor track) maneuvers into tight interior corners and executes 3D non-linear contours that linear gantries cannot touch.
Return on Investment (ROI) Timeline: Real Case Study
Consider an intermediate structural fabrication shop in Tamil Nadu handling 500 tons/month of built-up beams:
- Manual Labor Cost: 12 manual welders + 6 helpers = ₹5.4 Lakhs/month in direct payroll, plus consumable waste.
- Automated Cell Operation: 1 operator + 2 riggers = ₹95,000/month.
- Flux & Wire Utilization: Automated SAW recovers 95% of unfused flux, saving ₹1.2 Lakhs/month in consumable scrap.
- Direct Monthly Cash Savings: ₹5.6 Lakhs/month.
- Payback Period: An ₹80 Lakh total cell CapEx achieves full capital break-even within 14.2 months.
Executive Decision Summary
- CapEx Starts at ₹35 Lakhs: Entry-level twin-torch beam manipulators enable small fabricators to compete with tier-1 PEB giants.
- 14-Month Payback: Fast break-even driven by 3x arc-on speed and 95% flux recovery.
- Zero Ultrasonic Testing Failures: Continuous automated parameters eliminate cold laps and lack of root penetration.
